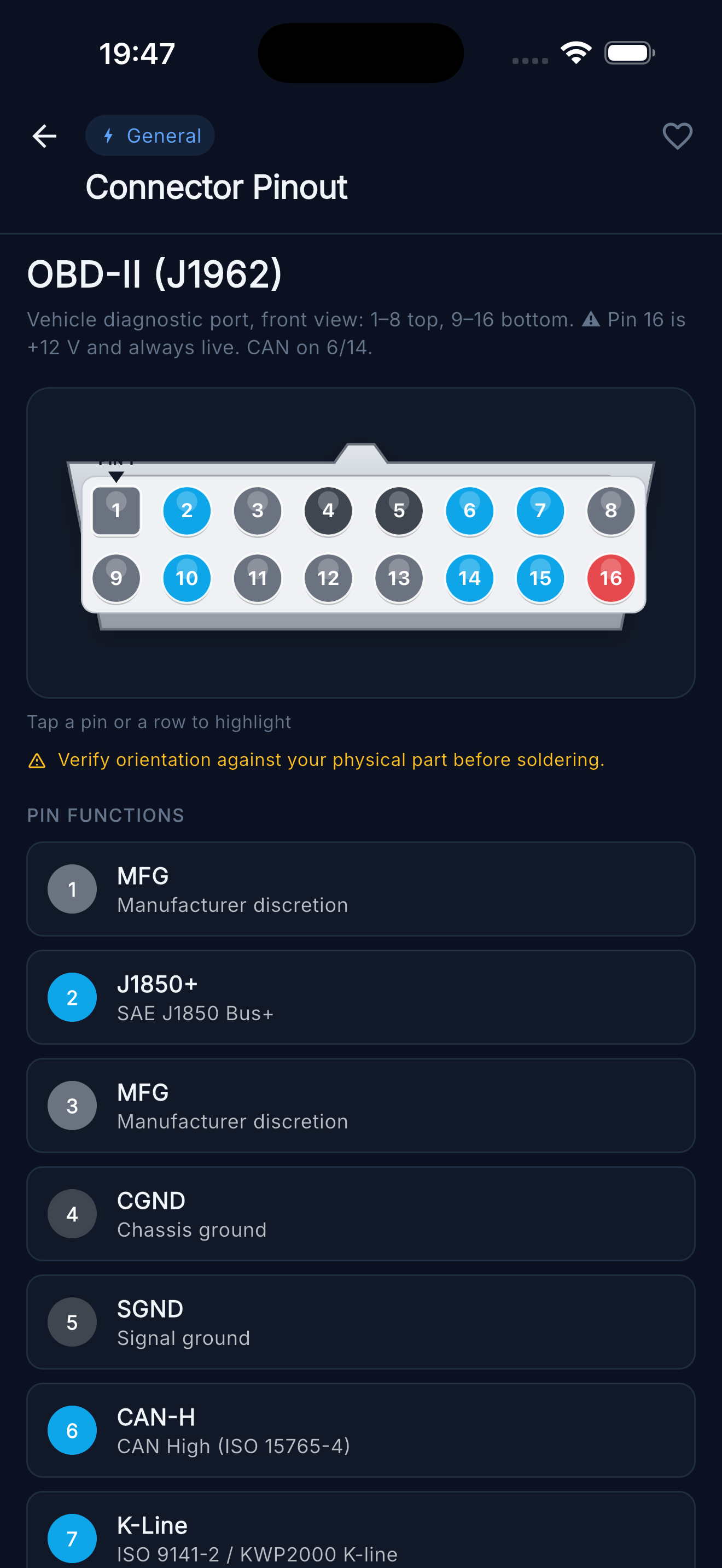

Connector Pinouts — OBD-II (J1962) diagnostic port

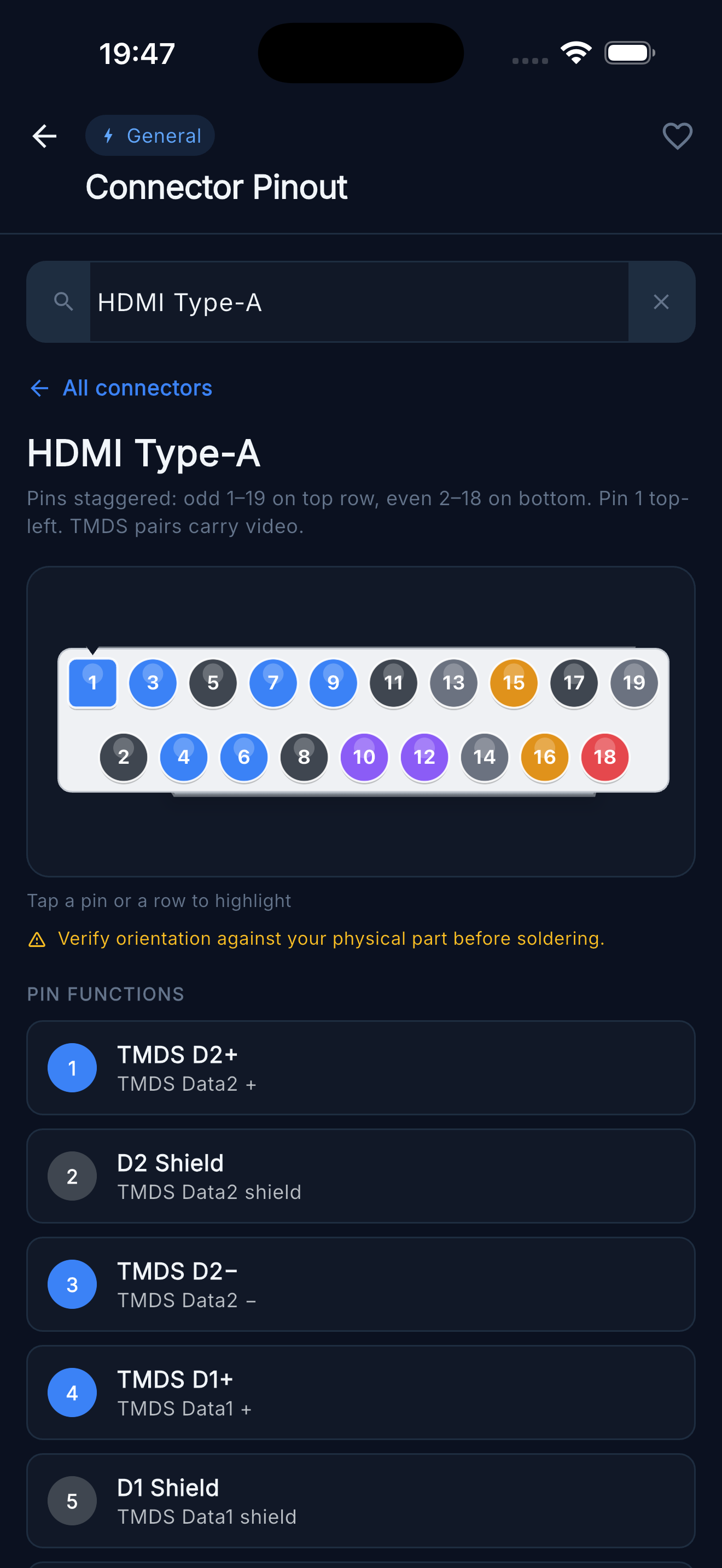

Connector Pinouts — HDMI Type-A

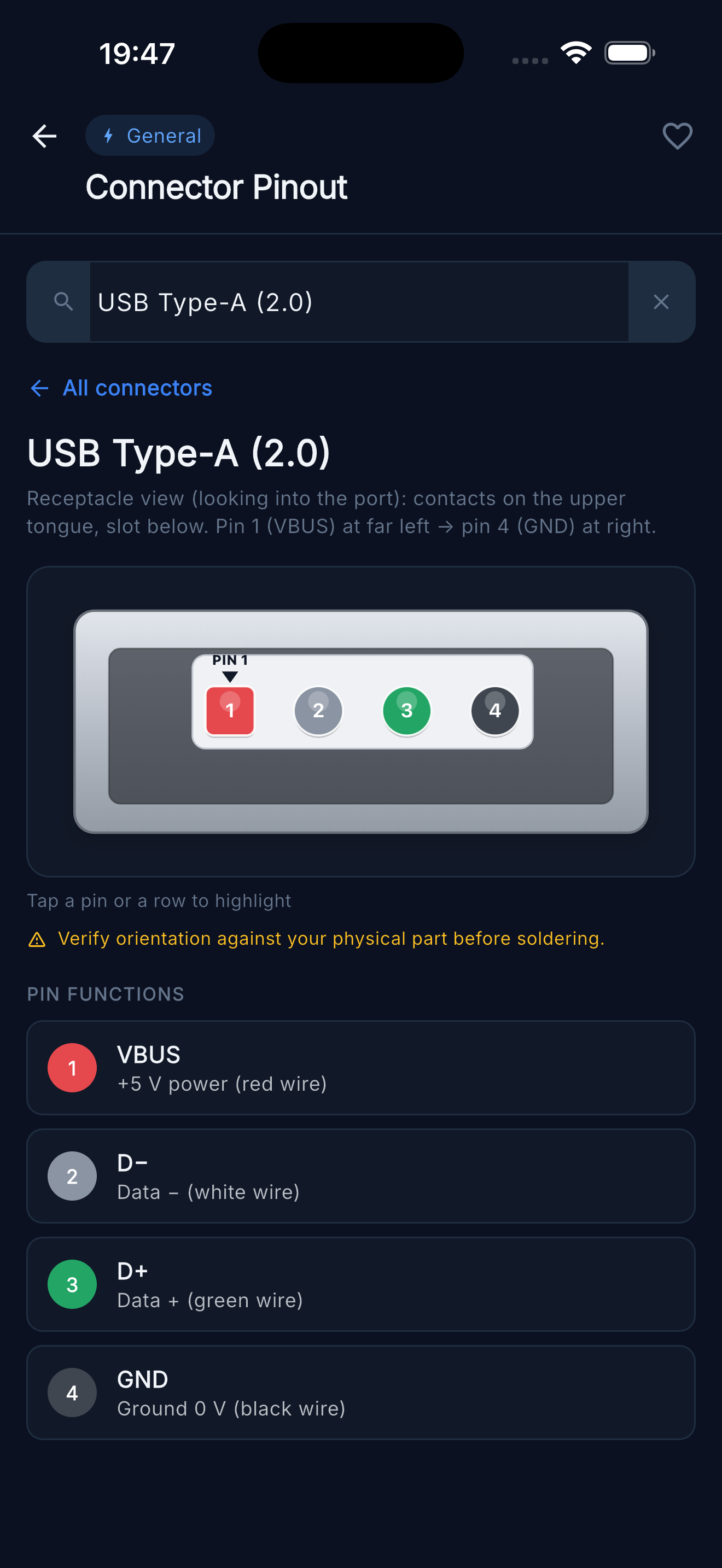

Connector Pinouts — USB Type-A (2.0)

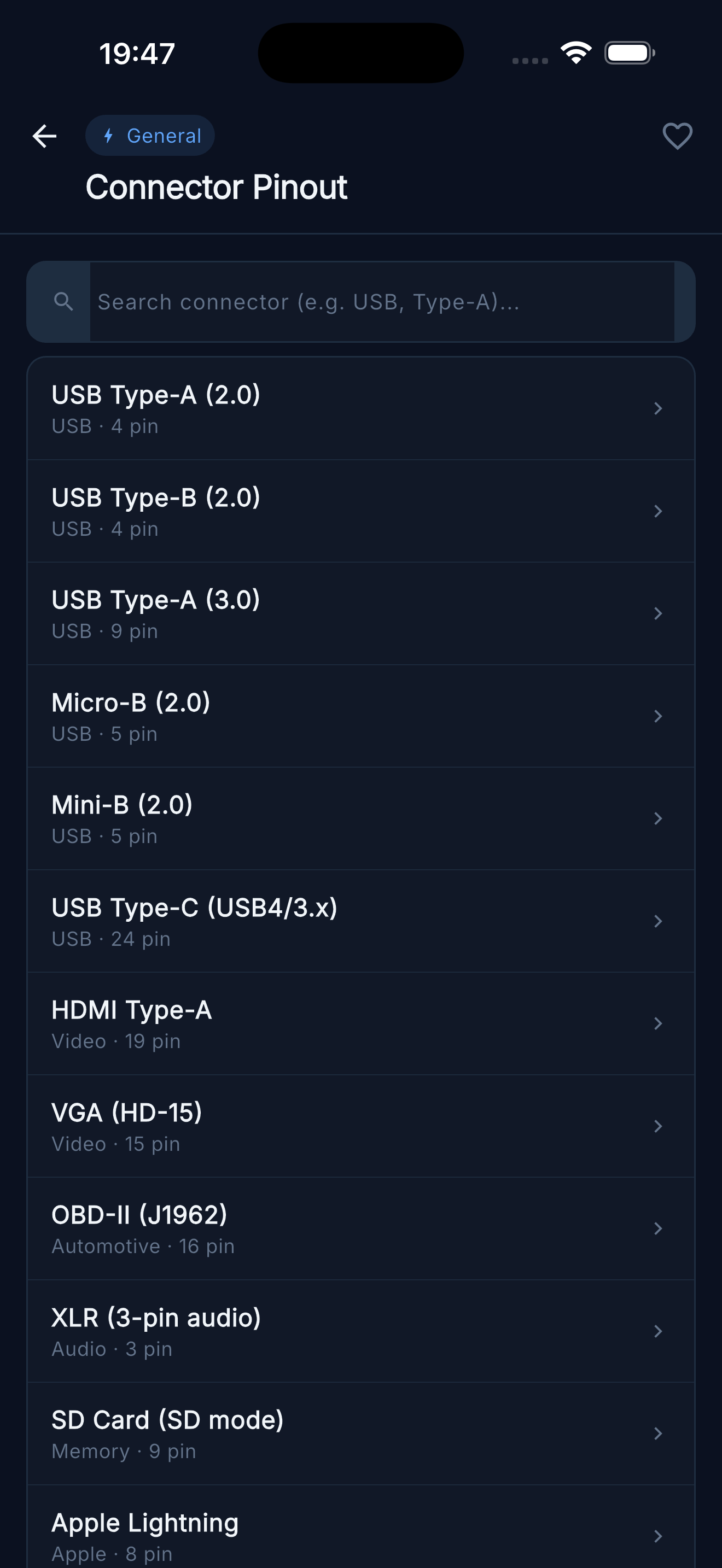

Connector Pinouts — Browse all connectors
Connector Pinouts
Pin diagrams for common audio and power connectors -USB, HDMI, VGA, RS-232, XLR, RCA, DIN, IEC and more. · in General
Pin diagrams for common audio and power connectors -USB, HDMI, VGA, RS-232, XLR, RCA, DIN, IEC and more. Tap a pin or row to highlight it.
How to use
What it's for
Pinouts for common connectors — USB, HDMI, VGA, RS-232…
You enter
- Pick or search a connector.
You get
- A pin diagram with each pin's function. Tap a pin or a table row to highlight it.
